Exhibition of Studio Projects


Bc. Petr Meloun

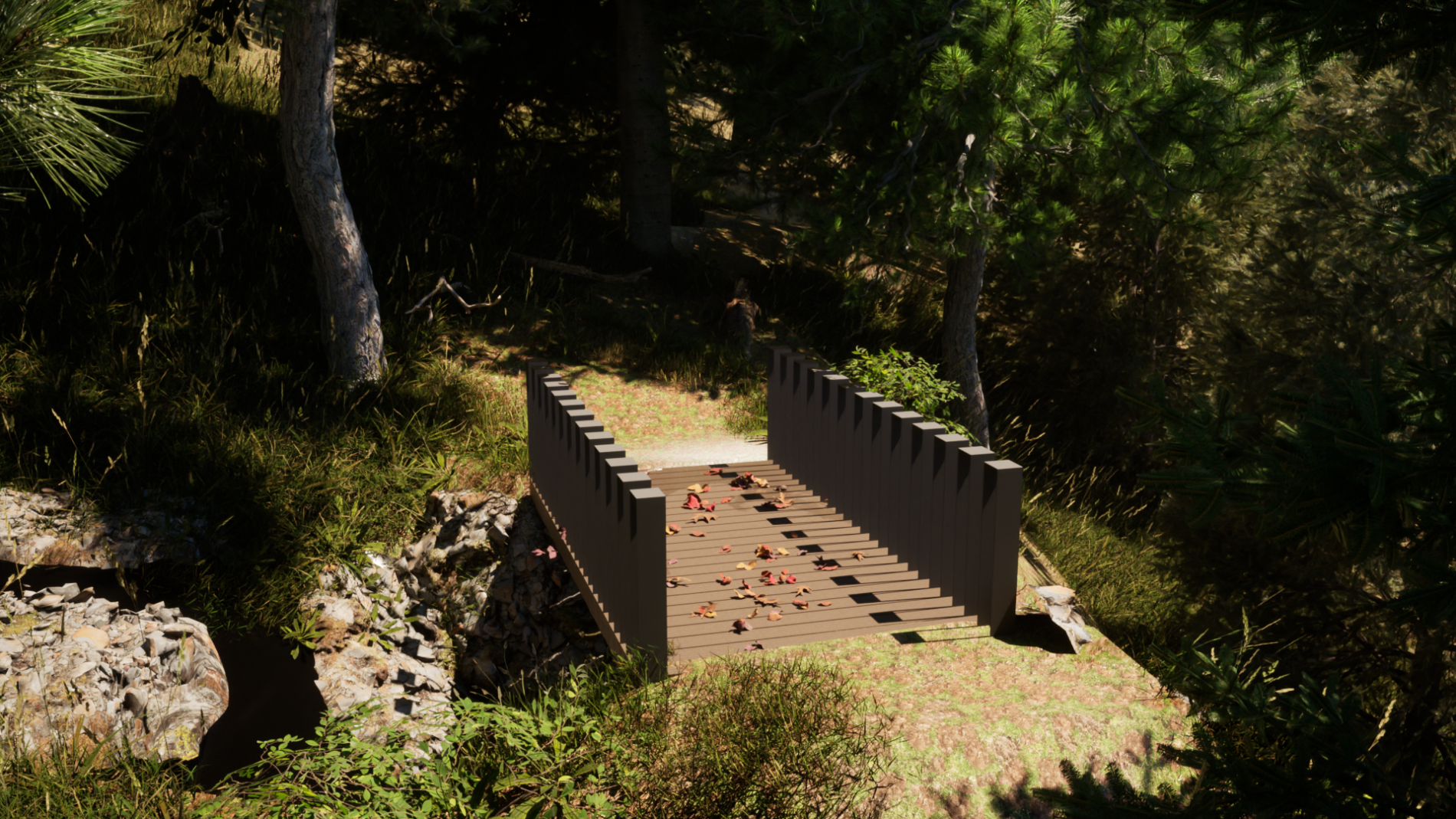

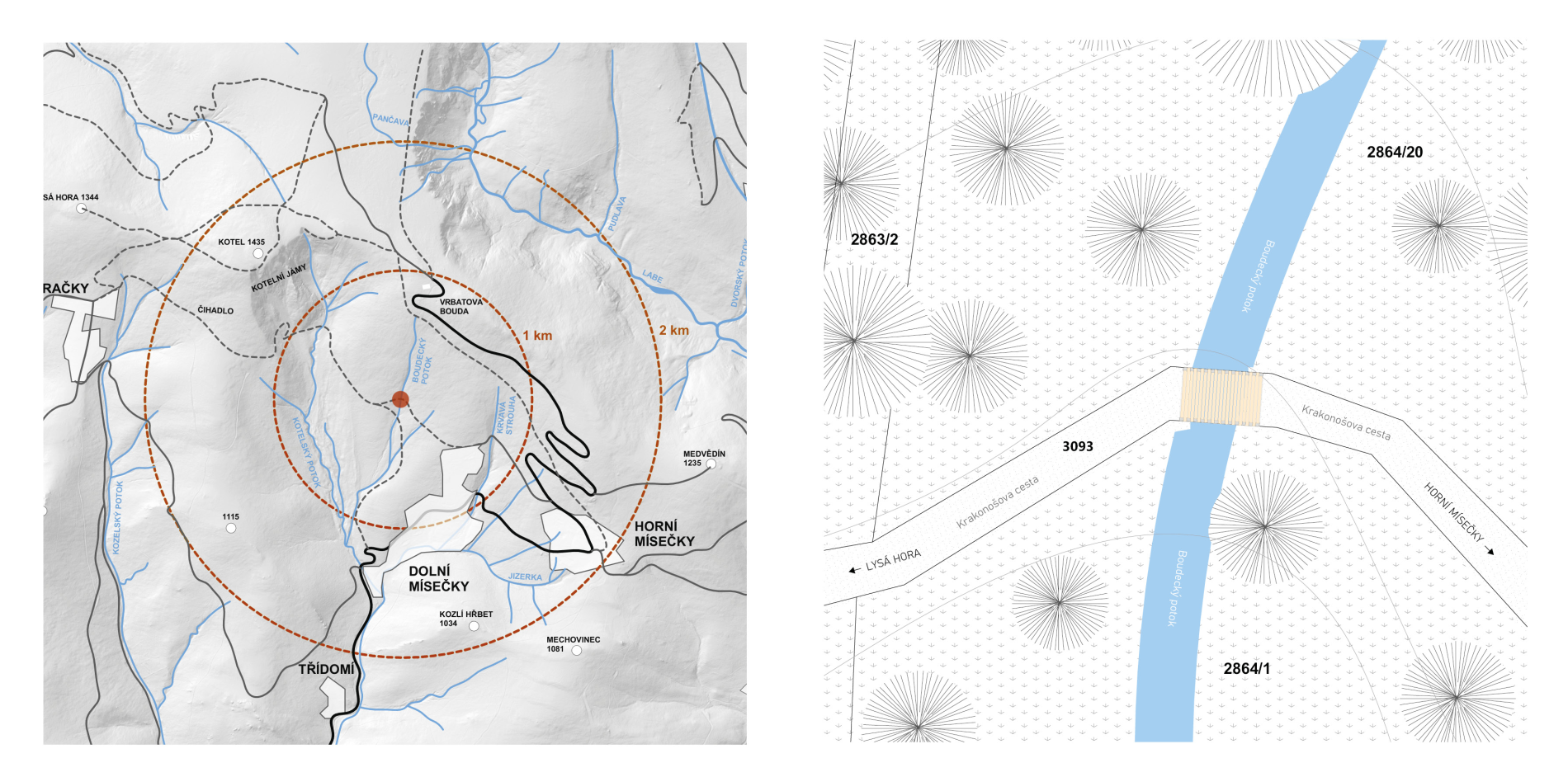

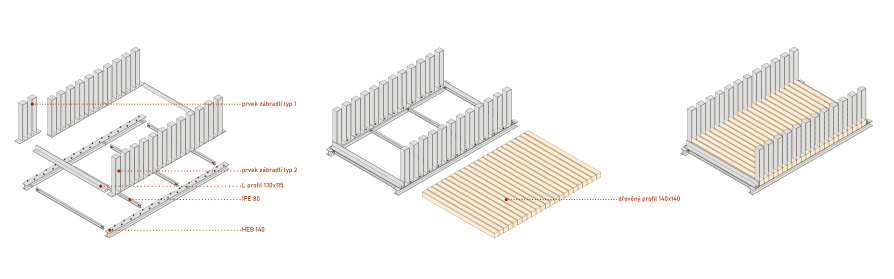

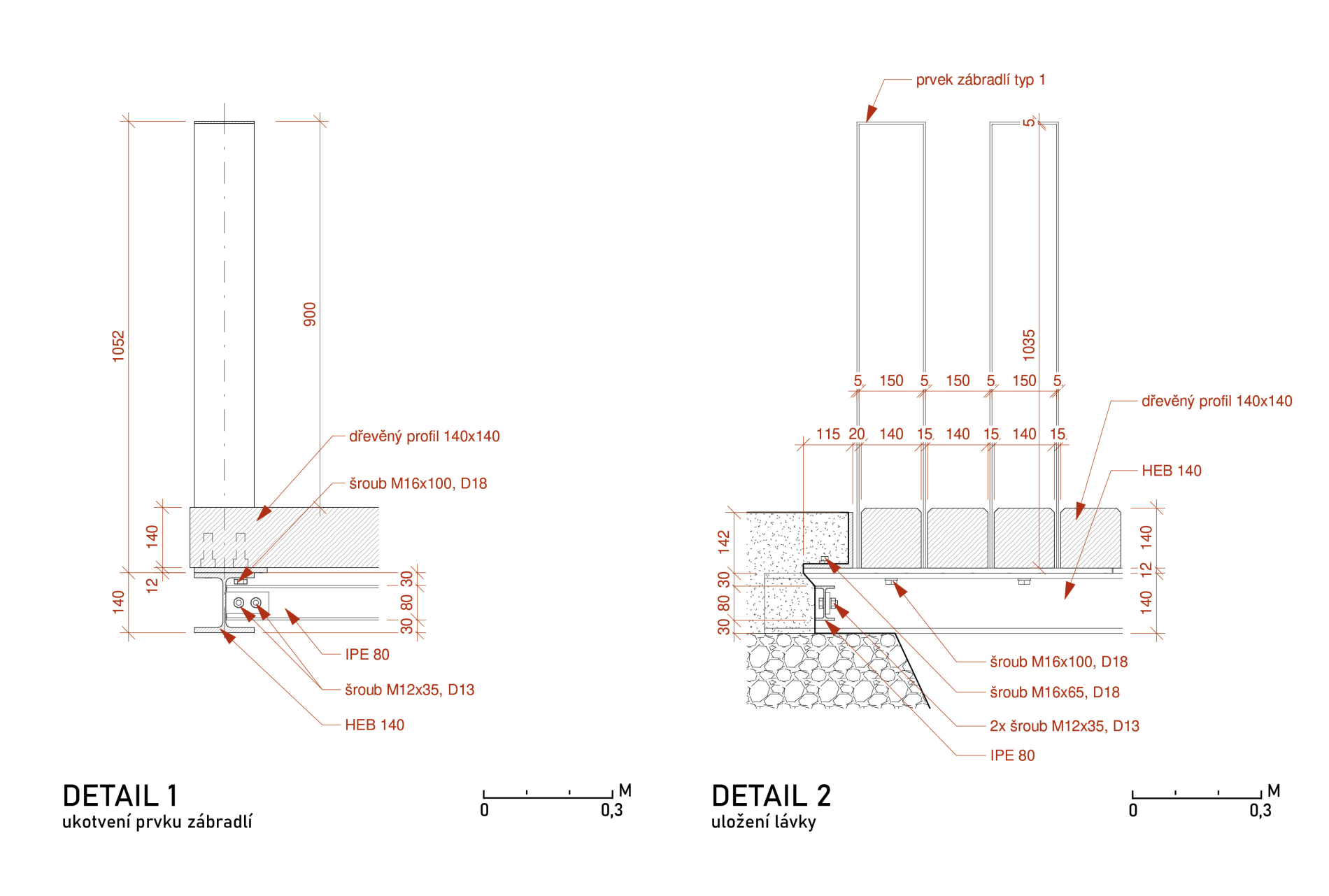

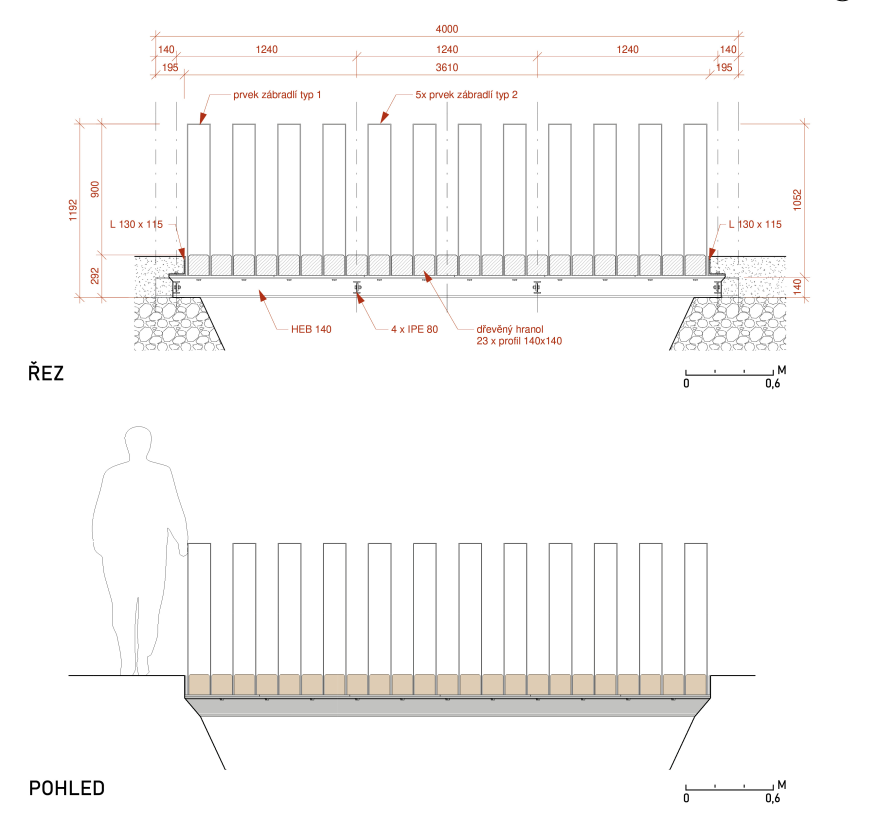

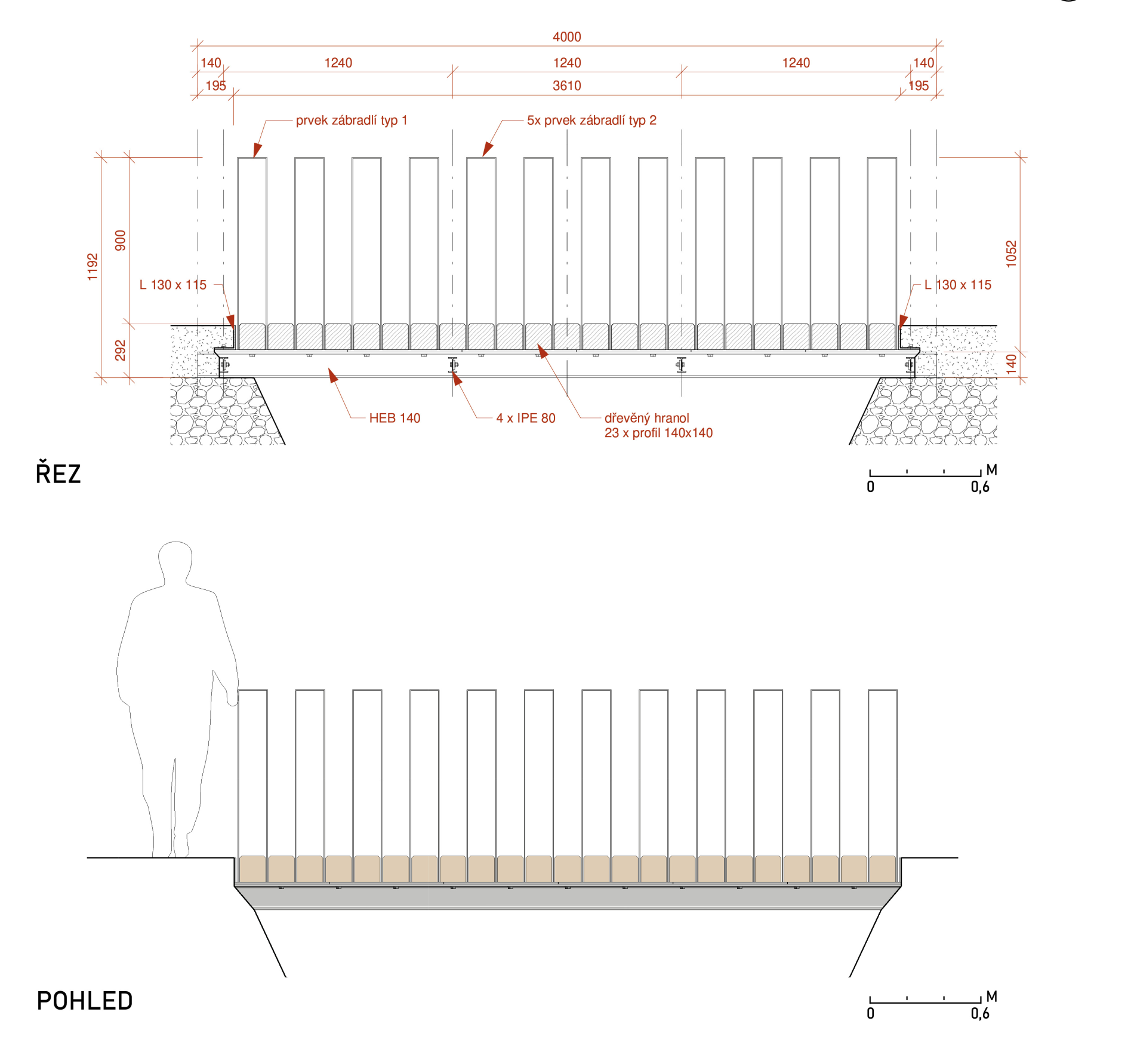

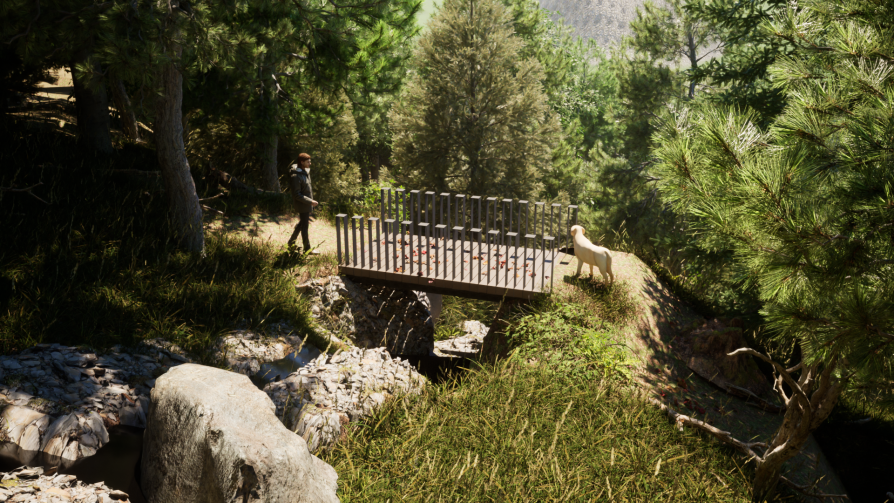

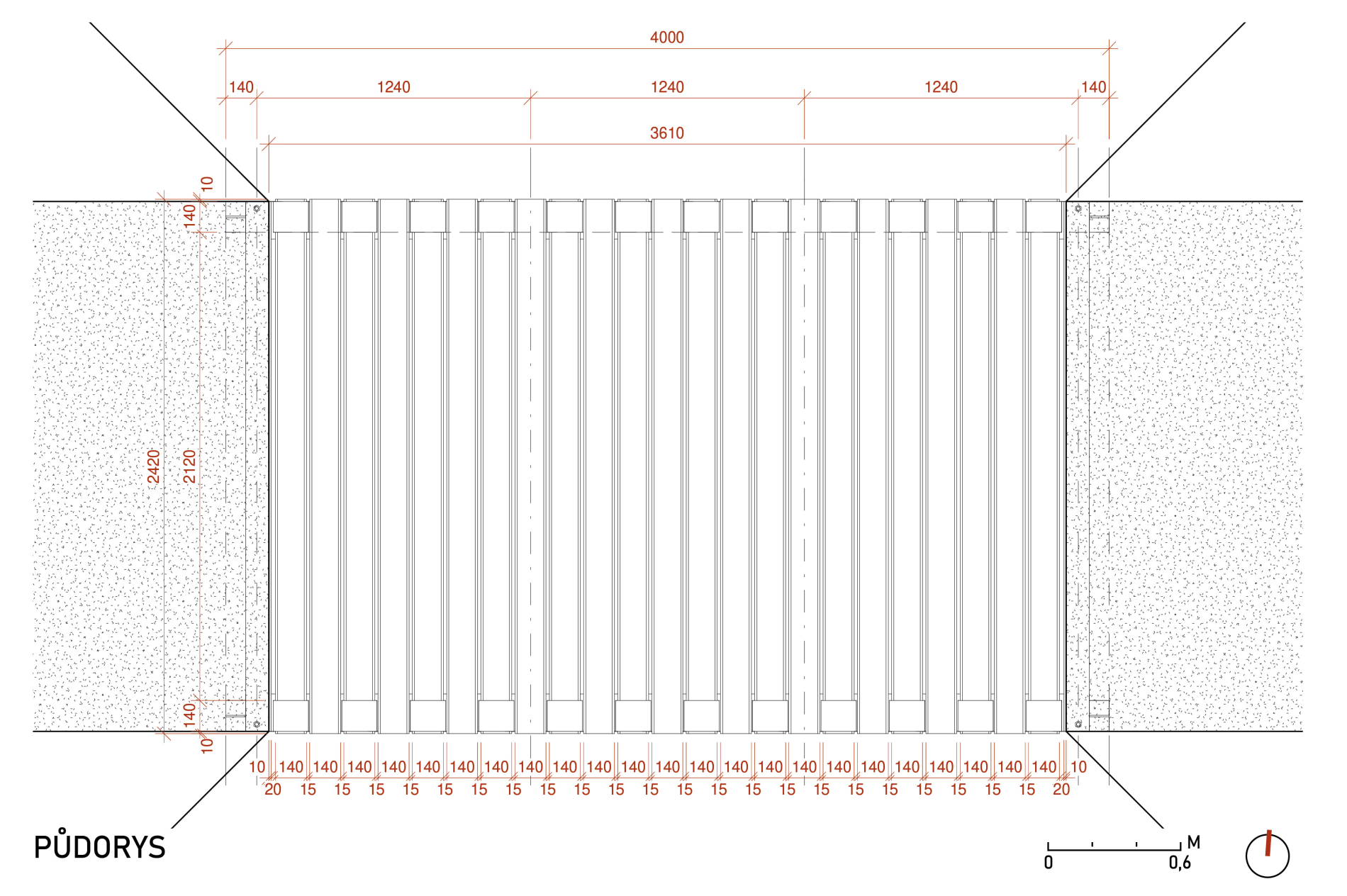

The footbridge called Kokrháč is located at the crossing of Boudecký potok and Krakonošová cesta near Horní Mísečky. The design of the footbridge was based on the specifications of The Krkonoše Mountains National Park. The footbridge has to allow the crossing of a four-wheeler. The entire structure has to be simply assembled atthe place. The structure is made of steel beams HEB and IPE. Welded railings are made up of segments that are screwed to the structure. Wooden beams form the surface of the footbridge.
